1. Definition and Working Principle
Steer-by-Wire (SBW) is the next generation of automotive steering technology that eliminates the mechanical connection between the steering wheel and the wheels. Instead, the driver’s
steering input is captured by sensors, sent to the Electronic Control Unit (ECU) and then executed by actuators that adjust the wheel angle. At the same time, road feedback is simulated by an
electric motor, so you feel like you’re steering a real car.
Steer-by-wire technology is changing the automotive industry by enabling new levels of vehicle intelligence and connectivity, towards more software-driven mobility solutions.
Compared with traditional hydraulic power steering (HPS) or electric power steering (EPS), steer-by-wire (SBW) is lighter, quieter and more intelligent. As cars and cars evolve from
electromechanical systems to software-defined, intelligent platforms, SBW is considered a core component of software-defined vehicles and is the trend of the future of electric
vehicles (EVs) and intelligent driving. The electronic and software-driven steering system brings more advanced safety features, automation and user experience.

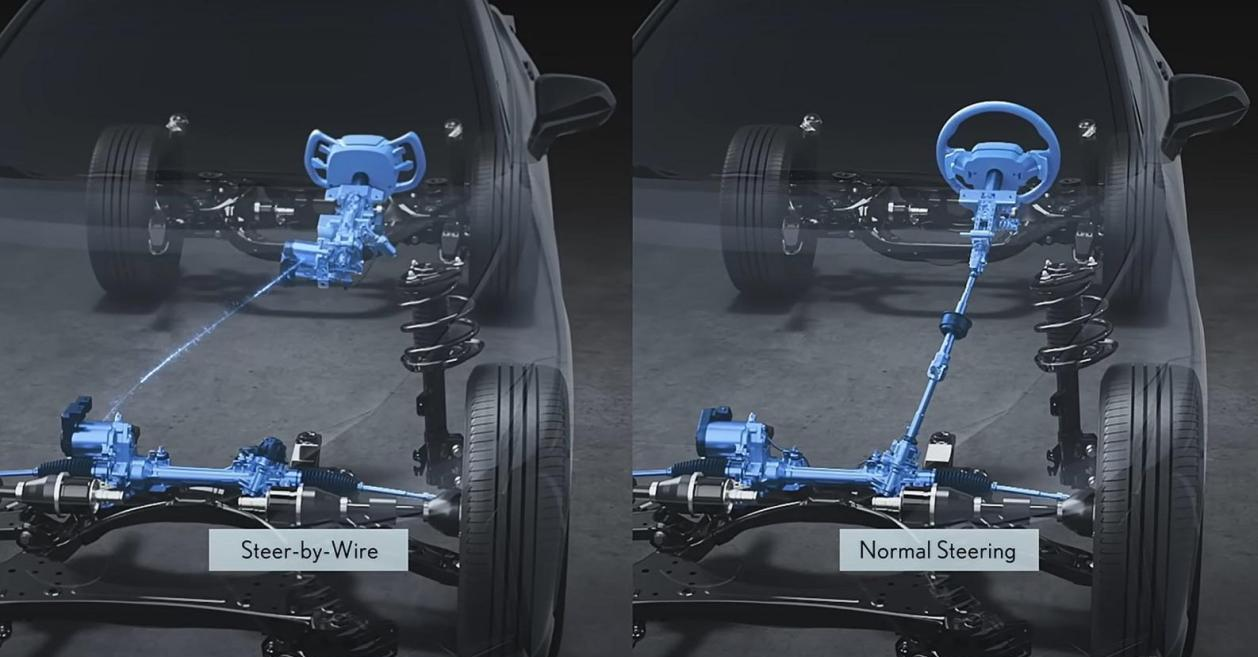

2. Evolution of Steering Systems
The development of automotive steering systems reflects the industry’s shift towards electrification and intelligence:
Mechanical Steering: Simple structure but heavy driving effort.
Hydraulic Power Steering (HPS): Better comfort but high energy consumption and leakage.
Electric Power Steering (EPS): Currently mainstream, 99.2% of global passenger vehicles in 2025.
Redundant Steering System (RSS): Dual ECU and dual-motor design for more safety.
Steer-by-Wire (SBW): Fully electronic steering, the foundation of software-defined vehicles and advanced autonomous driving.
Some pioneering models like NIO ET9 and Tesla Cybertruck have already adopted steer-by-wire technology, mass production is about to start. For example, NIO ET9 uses steer-by-wire to control precisely and have advanced safety features, Tesla Cybertruck shows how this technology can deliver better steering response and adaptability in a production car.
3. Steering System Components
A modern steer-by-wire system consists of several key components that work together to deliver precise and responsive steering control. At the center of the system is the steering wheel, which is the primary interface between the driver and the vehicle. When the driver turns the steering wheel, sensors capture the angle and force of the input immediately. These signals are sent to the electronic control units (ECUs), which process the data and determine the optimal steering response for the current driving situation.
The ECUs then send commands to the steering actuators, which physically turn the road wheels. These actuators, often electric motors, provide the necessary steering force to achieve the desired wheel angle. Advanced sensors monitor parameters such as vehicle speed, steering wheel position and road conditions, and feed real-time data back to the ECUs. This feedback loop allows the system to adjust rapidly, for both safety and driving experience.
In some steer-by-wire systems, a mechanical connection between the steering wheel and the road wheels may be retained as a backup, for added steering safety and reliability. By integrating these components—steering wheel, sensors, ECUs, actuators and optional mechanical connections—the steer-by-wire system delivers a seamless, efficient and safe steering experience for modern electric vehicles.
4. Software Defined Vehicle Architecture
The software defined vehicle (SDV) is changing how car manufacturers design, build and update modern vehicles. In an SDV, most of the vehicle functions are managed and optimized by software, so there’s unprecedented flexibility and continuous improvement. The architecture of a software defined vehicle is typically divided into several layers.
At the top is the user applications layer, which includes all the software and services that interact directly with the driver and passengers—such as infotainment, navigation and vehicle control interfaces. Below that is the instrumentation layer, which manages critical vehicle systems like advanced driver assistance systems (ADAS), steering, braking and other complex controllers. The embedded OS layer provides the foundation for secure and reliable operation, often using a modular microkernel design to support a wide range of vehicle functions. At the bottom is the hardware layer, which includes the physical components such as sensors, actuators, embedded chips and control units.
This layered approach allows car manufacturers to add new features, enhance existing functions and address security or performance issues through over-the-air software updates. So vehicles become more adaptable, can evolve over time and deliver a better driving experience for both drivers and passengers. The software defined vehicle architecture is the enabler for advanced steering systems, autonomous driving and other next-generation automotive technologies.
5. Wheel Steering Capabilities
Steer-by-wire systems unlock a new level of wheel steering capabilities that go beyond what traditional steering systems can offer. One of the key features is variable steering ratios, which means the system can adjust how much the wheels turn in response to steering wheel input. At low speed, such as during parking or tight cornering, the system can deliver a more direct and responsive steering feel, making it easier and more precise to maneuver. At high speed, the steering ratio can be relaxed, providing more stability and comfort for the driver.
Another feature is adjustable steering force. Drivers can personalize the steering feel to their preference, whether they want a lighter touch for city driving or a firmer response for sporty handling. In emergency situations, the system can also reduce the steering force, helping the driver to maintain control and safety.
Advanced safety features are integrated seamlessly into the steer-by-wire system. Using a network of sensors and cameras, the system can support functions like lane departure warning and automatic emergency steering. These features monitor the vehicle’s position and surroundings and make real-time adjustments to the steering as needed to prevent accidents and keep the vehicle on course. With these capabilities, steer-by-wire systems deliver a safer, more adaptable and more enjoyable driving experience for all road users.
6. Key Benefits of Steer-by-Wire
Steer-by-wire systems offer many benefits, including steering safety, steering performance and user steering experience.
Lightweight Architecture By removing mechanical shafts and columns, SBW reduces structural weight, improving overall energy efficiency. An added benefit of modular and virtualized vehicle architectures is the ability to further optimize vehicle performance and adaptability.
High-Precision and Personalized Steering Electronic signal transmission allows faster response and enables customized steering modes such as comfort, sport and luxury, enhancing the driving experience. Variable steering ratios also provides better maneuverability, making parking and low-speed handling easier and more precise. Integration with ADAS SBW supports lane keeping assist (LKA), automated parking and highway NOA (Navigate on Autopilot), making it a key enabler for intelligent driving. It also enables hands off operation during automated driving maneuvers, increasing safety and comfort.
More Vehicle Design Flexibility Without physical steering shafts, car manufacturers have more freedom in cockpit design, creating opportunities for smart cabins and flexible driving spaces. SBW increases interior space by removing the need for a traditional steering column, allowing for more comfortable and innovative cabin layouts.
Over-the-Air (OTA) Upgradability As part of the software defined vehicle architecture, SBW systems can be updated over the air, ensuring performance and safety improvements over the vehicle’s lifetime.
7. Market Drivers
Electrification: Lightweight, low energy consumption and compatibility with electric vehicle architectures.
Autonomous Driving: Millisecond level electronic control for precise maneuvering required for higher level automation.
Safety and Comfort: Redundant design for safety and customizable steering feel for comfort.
Regulatory Support: Europe and China are opening up regulatory frameworks for SBW applications.
Software-Defined Vehicle Trend: SBW is part of the intelligent chassis, enabling deeper software integration.
8. Future Outlook
Technology Expansion: From premium to mid-range vehicles, accelerating adoption. Future may include rear-axle steer-by-wire systems which electronically control the rear axle to improve vehicle handling, stability and maneuverability.
AI and 5G Integration: With V2X and vehicle-road collaboration, SBW will enhance smart mobility ecosystems.
Cost Reduction: As production scales and supply chains mature, system costs will decrease.
Steering Wheel Transformation: In L4/L5 autonomous driving, steering wheels may become foldable, detachable or disappear, supported by SBW which enables stowable or retractable steering columns for greater cockpit flexibility and safety.
Enhanced User Experience: SBW enables personalized, intelligent and safer driving, turning vehicles into smart mobility spaces.
9. Conclusion
Steer-by-Wire is not just an upgrade of the automotive steering system but a strategic enabler for intelligent electric vehicles and autonomous driving. For OEMs, SBW is the foundation of the intelligent chassis; for consumers, it means safer, smarter and more personalized driving. With regulatory support, growing demand and continuous technological advancements, SBW will be a standard feature in the next generation of vehicles, a new era of steering technology.
